AOLITHIUM 12V 300AH LiFePO4 Lithium Battery High & Low Temp Protection

Description
Specification
Faq
Reviews

Aolithium 12V 300Ah LiFePO4

As the main product of Aolithium, 12V 100Ah LiFePO4 battery has good internal structure design and safety protection. In addition to the advantages of lithium iron phosphate battery itself, Aolithium has made more functional development in safety and energy reserve. So much so that the battery can be suitable for any scenario you need. After launching in the market, 12V LFP battery is very popular among customers because of its unique performance and added value. In terms of product quality, Aolithium has reaped 100% positive feedback. We get a powerful 12V 300Ah battery by connecting three 12V 100Ah batteries in parallel.

Perfect Structure Design

Solid plate cover, made of ABS material, high durability. After drop test, no damage was found.
The cells are laser welded with the same process used for automotive power batteries.
The housing is removable for your inspection and maintenance in use.
The interior is connected with high quality custom thick copper bus bars to ensure over-current capability and greatly reduce the possibility of cross-polarity;
The heat dissipation performance is also superior;
The use of advanced fixing plate and bolt technology to ensure the stability of the battery;
The battery will not leak because the Aolithium battery can be mounted at any angle on your device.
Fits in group 27

High quality interior materials

Inside the battery, Aolithium takes the quality of components to the extreme. JBD BMS provides 6 protection functions. Square EVE cells provide high energy density. Bluetooth 5.0 is more convenient to use. A more noteworthy detail is that the battery uses a T-class fuse.

BMS battery

Aolithium batteries use JBD programmable BMS with 6 built-in protection modules to ensure safe operation and extend battery life by monitoring temperature, current and voltage.

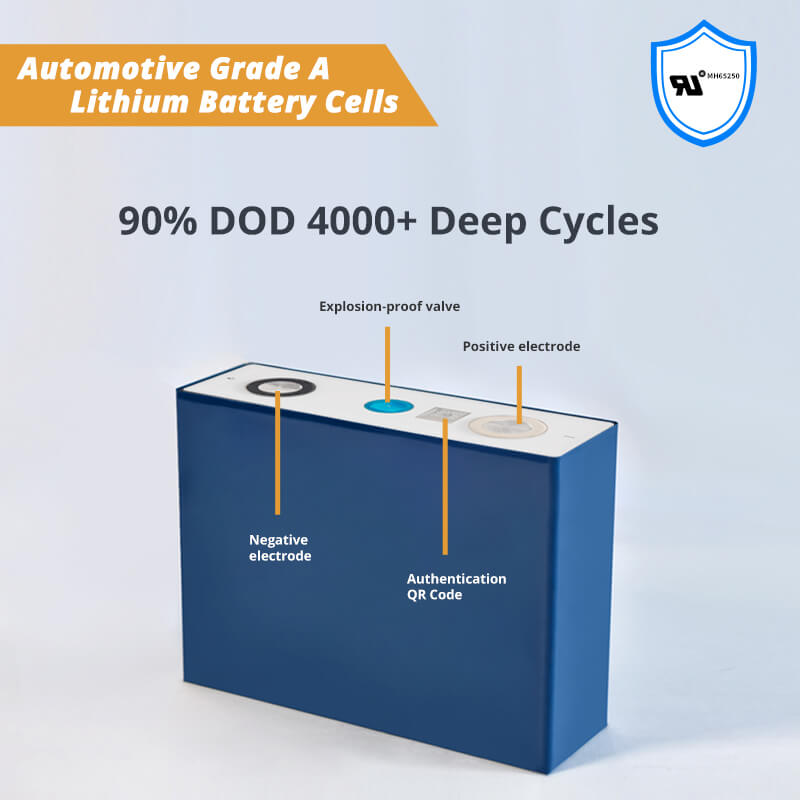

EVE LiFePO4 cell (Prismatic cell)

Aolithium uses Prismatic cells compared to cylindrical cells. prismatic cells have obvious advantages:

Battery with Bluetooth 5.0

Each 12V100Ah battery uses Bluetooth 5.0 and contains a PCB antenna. Compared with Bluetooth 4.0, it can transmit the signal farther and without considering the direction of use. You can connect the battery to Bluetooth via the Aolithium APP. Doing so allows you to monitor the operation of the battery in real time.

LiFePO4 For RV | For Marine | For Backup Power

4000+ Deep Cycle Capability

Aolithium LiFePO4 batteries are inherently safe both chemically and thermally, and do not use rare materials like Cobalt or Nickel. In return, we get a slightly lower cell voltage of 3.2V per cell (4x cells = 12.8V) and LiFePO4 are much more stable at a chemical level, and have much higher lifespans - our batteries can last 4000+ cycles (depending on use)- NMC is typically 350 to 400 cycles.

SPCIFICATION
Nominal Voltage	12.8
Nominal Capacity	100
Energy	1280Wh
Weight	23.15lb
Dimensions LWH	12.006.857.40 in
Terminal	M8
Voltage Window	10V-14.6V
Charge Voltage	14.6V
Recommend Charge Current	≤50A
Max.Charge Current	100A
Max.Continue Discharge Current	100A
Maximun Pulse Discharge Current	200A,＜10s
Cycle Life(+20°C 0.2C 100%DOD)	≥4000
Operating Temperature	Charge:0°C~55°C Discharge:-20°C~60°C
Storage Temperature	-20°C~35°C

Faster charging speed

This rechargeable LiFePO4 battery has three 3 charging methods, you can choose the charger, or you can use solar energy. Aolithium's engineers have introduced you to charging methods.

FAQs

1) Recommend to fully charge the batteries before parallel connection.
2) The voltage of the two batteries should be the same when connected in parallel (error range 0.1V).
3) The cable length between batteries should be the same.
4) Do not use batteries in series or in parallel for more than 4 months.

1) The SOC of the two batteries should be the same (small errors allowed).
2) The cable length between batteries should be the same.

3) Do not use batteries in series or in parallel for more than 4 months

You can't connect lithium battery and lead-acid battery together, and different brands of lithium batteries cannot be connected, because the batch of cells is not the same.
Even if it is the same brand, If the purchase interval is more than 4 months, it is also not recommended to connect.
Because the energy decay between the cells is not consistent.

The charging operation temperature is 0℃~55℃ (32℉ ~131℉)
The discharge operation temperature is -20℃～60℃ (-4℉ ~ 140℉)
If the battery is above or below these temperature ranges, the BMS will turn on the cut-off protection.

The length of time it takes to charge a li-ion deep cycle battery depends on the type and size of your charging source.
For example, if your charger is 20 amps and you need to charge an empty battery, it will take 5 hours to reach 100%, if your charger is 50 amps and you need to charge an empty battery, it will take 2 hours to reach 100%.

Our batteries can of course be shipped to Canada and Europe, there will just be some additional VAT in Europe. You can purchase directly from our website and VAT will be calculated automatically.

The battery can be mounted on its side and will not affect the performance.

Aolithium built-in Smart Bluetooth Modules monitoring from your phone, so you can know exactly what your battery data is at any time.

MORE QUESTIONS ABOUT YOUR OFF-GRID POWER SYSTEM? LEARN MORE FROM THE AOLITHIUM HELP CENTER!

download

• 12V100Ah-4S Battery Specification

• Aolithium Batteries User Manual

• Bluetooth App Connect Guide

What's in the box

12V 100AH SMART LITHIUM
IRON PHOSPHATE BATTERY X1 & PRODUCT MANUAL X1

AOLITHIUM 12V 300AH LiFePO4 Lithium Battery High & Low Temp Protection Deep Cycle Rechargeable 3840Wh - Built with 200A BMS - 3 Batteries

3 100AH 12V BATTERIES PARALLEL.

Aolithium 12V 300Ah LiFePO4

Perfect Structure Design
